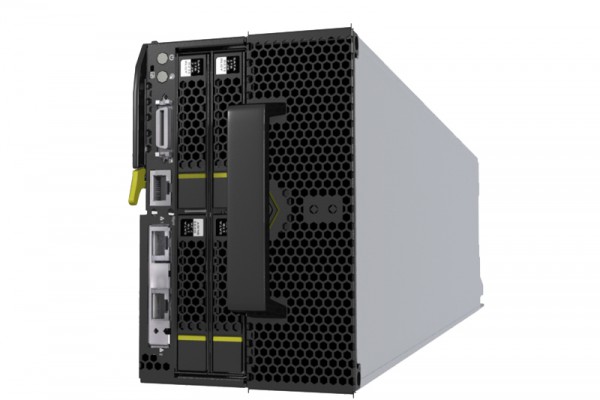

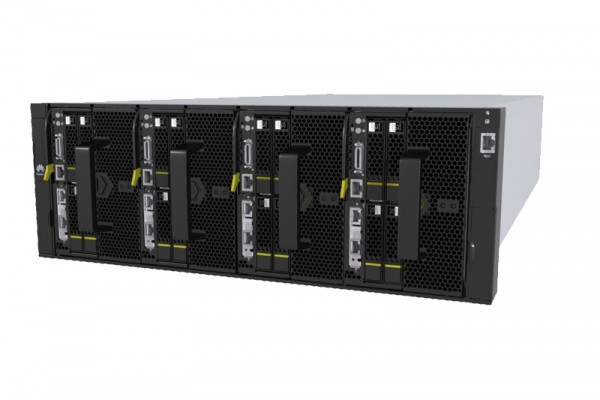

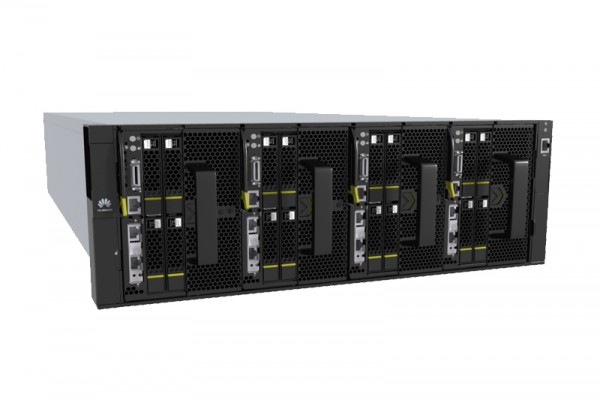

FusionServer X6800 Data Center Server

A next-generation data center server optimized to implement all aspects of business into one solution. This server provides a broad portfolio of server nodes with different specifications to flexibly provide service applications for computing, storage, and I/O resources.

Specifications

Specifications	X6800
Form Factor	4U multi-node server
PCIe Expansion	8 rear PCIe slots
PSU	4 x 750W or 1,200W AC or 800W DC PSUs in 2+2 or N+1 redundancy mode
Fans	5 fan modules in N+1 redundancy mode
Management	Uses HMM and iBMC for management, adopts Huawei Hi1710 management chip, supports standard management interfaces, such as SNMP and IPMI, and provides a GUI, remote KVM, virtual media, SOL, intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software, provides remote configuration and deployment in batches, performance monitoring, and firmware upgrades
Power Supply	110V to 220V AC –48V DC
Operating Temperature	5°C to 40°C (41°F to 104°F)
Certifications	CE, UL, FCC, CCC, and RoHS
Dimensions (H x W x D)	170 mm x 447 mm x 898 mm (6.69 in x 17.60 in x 35.35 in)
