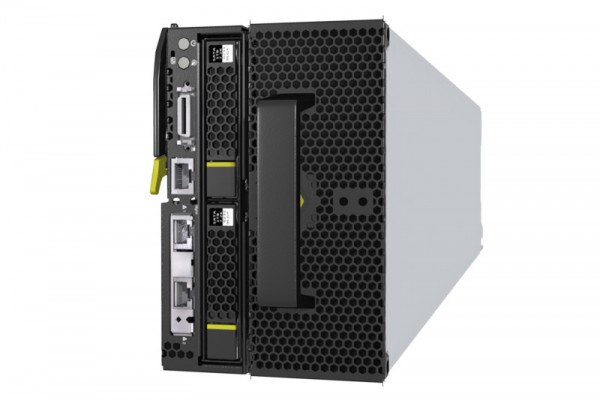

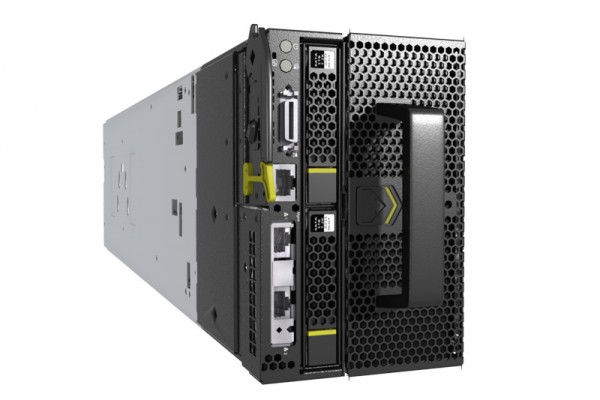

FusionServer XH628 V3 Server Node

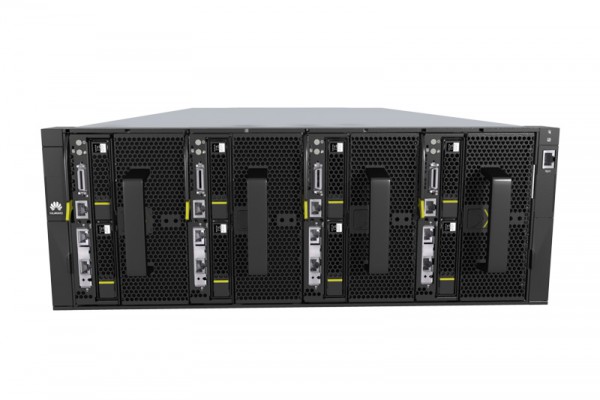

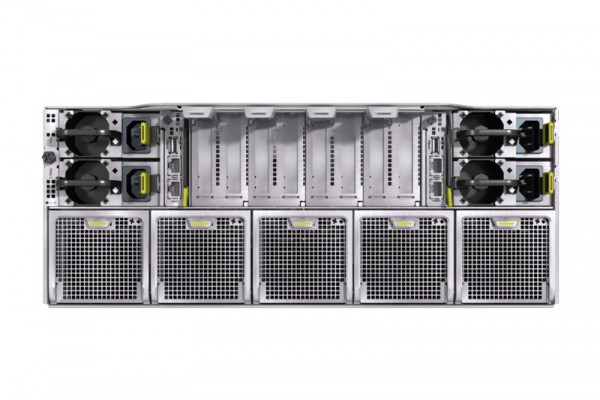

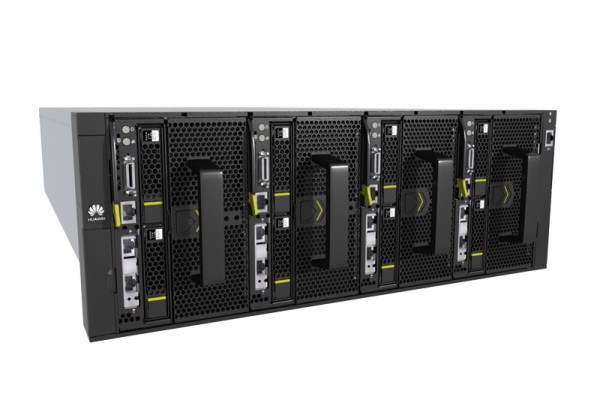

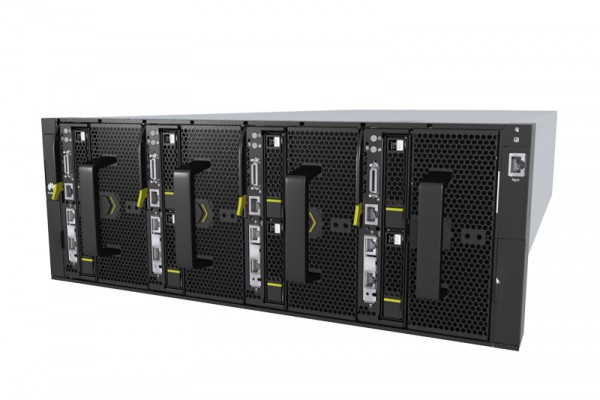

A full-height, dual-socket server node which occupies two slots in a Huawei X6800 server.

XH628 V3 uses Intel® Xeon® E5-2600 v3 series processors, supports 16 DDR4 memory slots. XH628 V3 can be configured with twelve 3.5-inch SAS or SATA HDDs, or 2.5-inch SSDs, SAS, or SATA HDDs and two 2.5-inch SSDs or SATA HDDs.

Specifications

 Specifications  XH628 V3
Form Factor Full-height, 2-socket server node occupying two slots
Number of Processors 1 or 2
Processor Intel® Xeon® E5-2600 v3 series processors
Memory 16 DDR4 DIMMs
Internal Storage
  • 12 x 3.5-inch hot-swappable SAS/SATA HDDs or 2.5-inch hot-swappable SAS/SATA HDDs or SSDs
  • (Optional) 2 x 2.5-inch SATA HDDs or SSDs
  • 2 x Mini-SSDs (SATA DOMs)
  • 1 x USB flash drive
LOM Network Ports 2 or 4 x GE ports or 2 x 10 GE ports
PCIe Expansion Up to 5 PCIe slots
Management Built-in iBMC:

  • IPMI, SOL, KVM over IP, and virtual media
  • One 10/100 Mbit/s RJ45 management network port
Operating Systems Supported
  • Citrix XenServer
  • Microsoft Windows Server
  • Oracle Enterprise Linux
  • Oracle Server VM
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF)
