Highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers. 40 Gbit/s upstream ports configurable to 10 Gbit/s for flexible networking.
Specifications

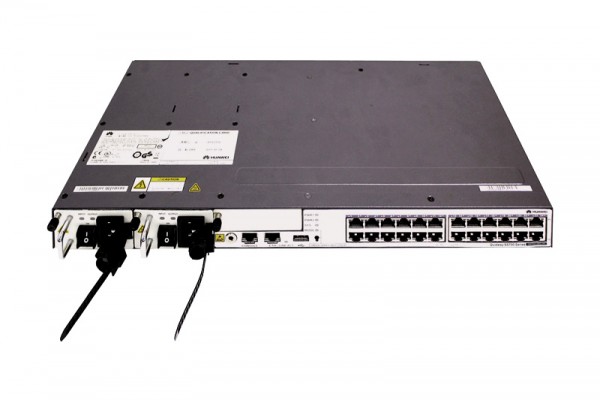

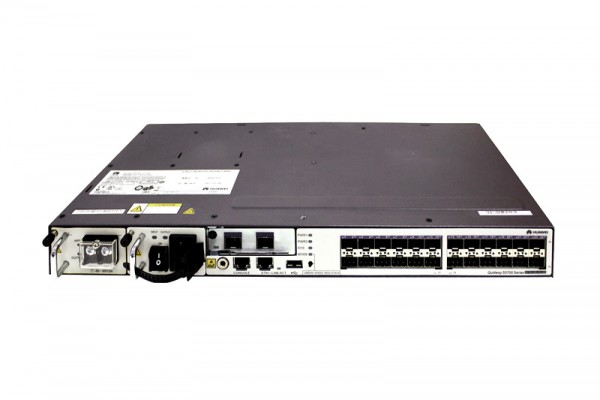

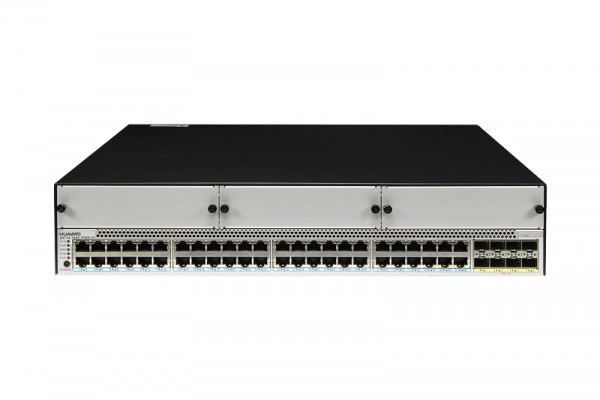

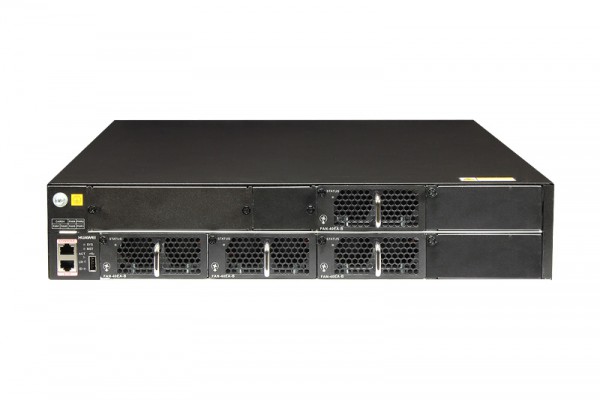

| Specifications | S5700-28C-HI | S5700-28C-HI-24S | S5710-108C-PWR-HI |
| Fixed Ports | 24 x 10/100/1000 Base-T | 24 x 10/100/1000 Base-X | 48 x 10/100/1000 Base-T, and 8 x 10 GE SFP+ |
| Extended Slots | One extended slot:Optional sub-card 1: 2 x 10 GE SFP+
Optional sub-card 2: 4 x 10 GE SFP+ Optional sub-card 3: 4 x 1000 BASE-X |
Three front extended slots:Optional subcard 1: 16 x 10/100/1000 BASE-T
Optional subcard 2: 16 x 1000 BASE-X One rear extended slot: Optional subcard 1: 4 x 10 GE SFP+ (no GE auto adaption) Optional subcard 2: 4 x 40 GE QSFP+ |
|
| MAC Address Table | 32K | 456K | |
| Ring Network Protection | RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
||
| IP Routing | Static route, RIP v1, RIP v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy | ||
| MPLS | MPLS L3VPNMPLS L2VPN (VPWS/VPLS)
MPLS-TE MPLS QoS |
||
| OAM | Hardware OAM:EFM OAM
CFM OAM Y.1731 performance test Hardware-level delay and jitter detection |
Software OAM:EFM OAM
CFM OAM Y.1731 performance test |
|
| Interoperability | VBST (compatible with PVST/PVST+/RPVST)LNP (similar to DTP)
VCMP (similar to VTP)
|
||
