S5700-EI Series Enhanced Gigabit Switches

Highly reliable gigabit access switches with enhanced security, VPN tunneling, and traffic analysis capabilities; Huawei’s intelligent iStack clustering technology enables smooth growth and scalability, while simplifying manageability and reducing O&M costs.

Specifications

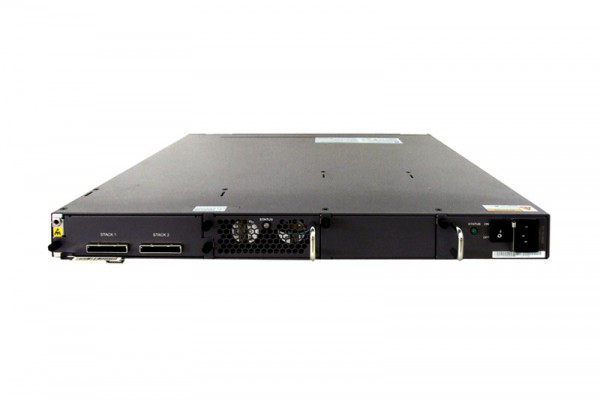

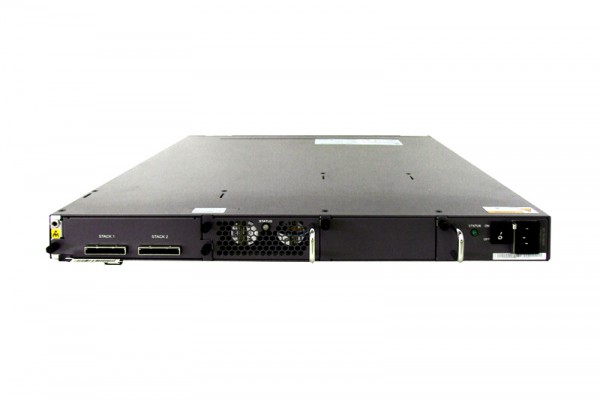

Specifications S5700-28C-EIS5700-28C-PWR-EIS5700-28C-EI-24S S5700-52C-EIS5700-52C-PWR-EI S5710-28C-EIS5710-28C-PWR-EI-AC S5710-52C-EIS5710-52C-PWR-EI-ACS5710-52C-PWR-EI
Fixed Ports S5700-28C-EI/S5700-28C-PWR-EI: 24 x 10/100/1000 Base-T portsS5700-28C-EI-24S: 24 x 100/1000 Base-X ports, two 10/100/1000 Base-T combo ports 48 x 10/100/1000 Base-T ports 24 x 10/100/1000 Base-T, two GE SFP combo ports, 4 x 10 GE SFP+ ports 48 x 10/100/1000 Base-T ports, 4 x 10 GE SFP+ ports
Extended Slots The S5700C series switch provides two extended slots, one for an uplink sub-card and the other for a stack card.The S5710C series switch provides two extended slots that support uplink sub-cards.
MAC Address Table IEEE 802.1d complianceMAC address learning and agingStatic, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

32K MAC
Interoperability VBST (compatible with PVST/PVST+/RPVST)LNP (similar to DTP)VCMP (similar to VTP)
Access Security DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI
Management and Maintenance Intelligent stacking (iStack)Virtual cable testSNMP v1/v2c/v3

eSight and web-based NMS

Auto-config

HTTPS

System logs and multi-level alarms

Remote network monitoring (RMON)

NetStream (supported by the S5710-EI)

sFlow
VLAN 4K VLANSGuest VLAN and voice VLANGVRP

MUX VLAN

Super VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN mapping
Ring Network Protection STP, RSTP, and MSTPRRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

Smart Ethernet Protection (SEP)

G.8032 Ethernet Ring Protection Switching (ERPS)

BPDU protection, root protection, and loop protection

BPDU tunnel
Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)ITU-Y.1731Enhanced Trunk (E-Trunk)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

DLDP

LACP
IP Routing Static routeLayer 3 dynamic route
