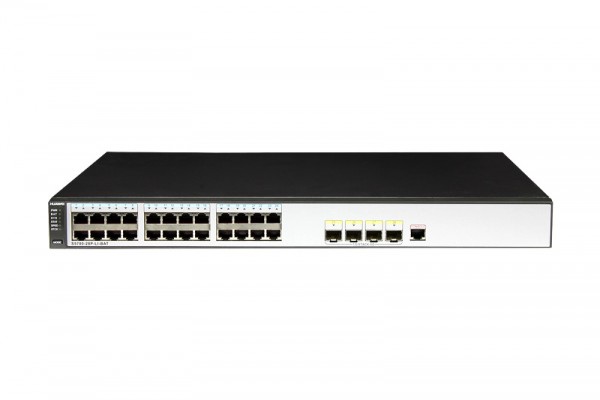

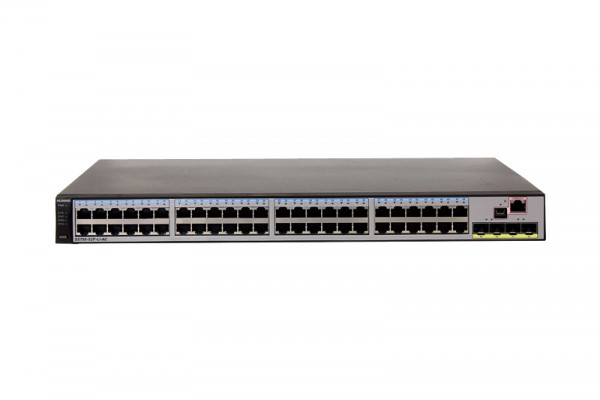

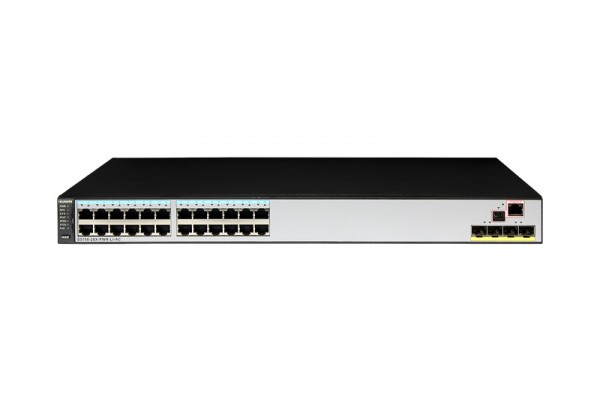

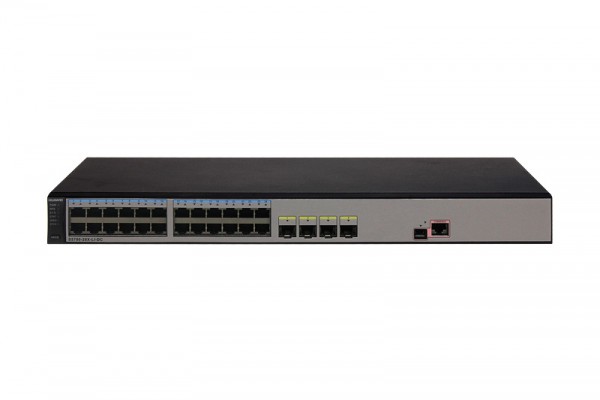

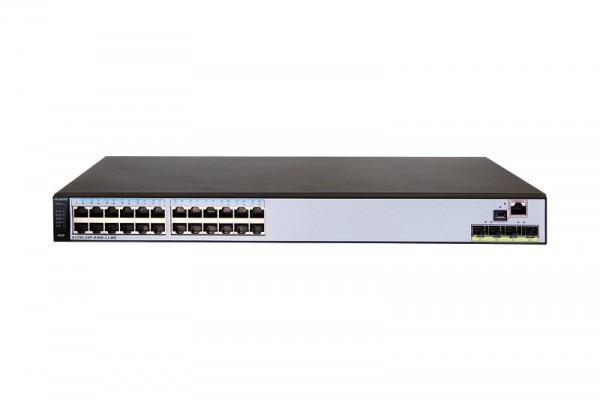

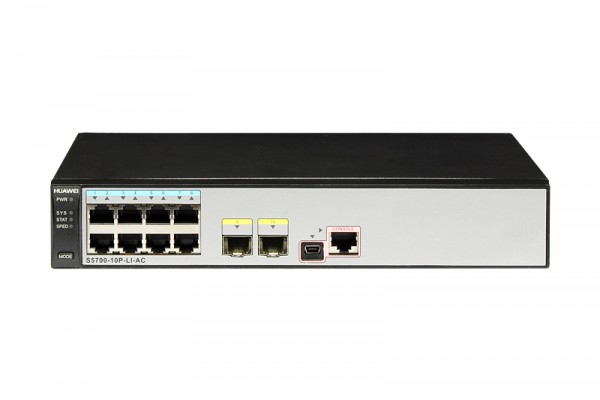

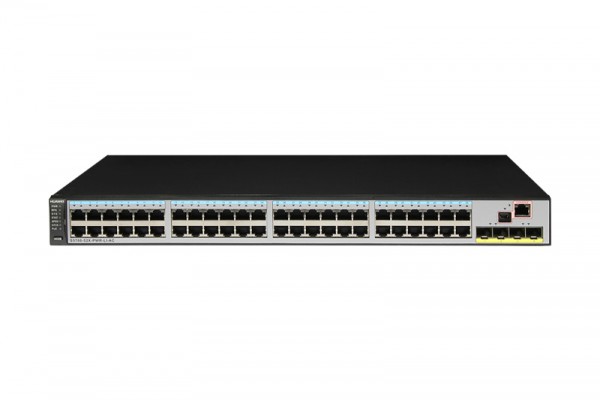

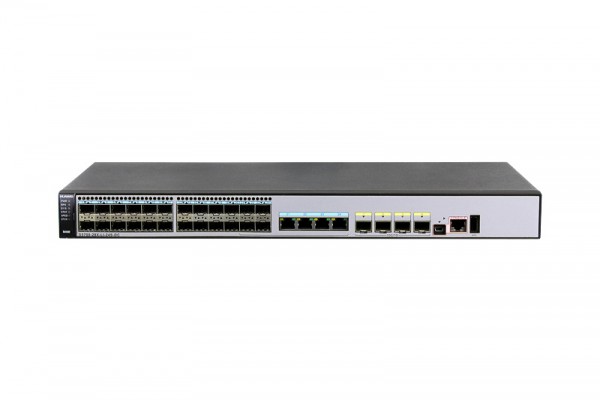

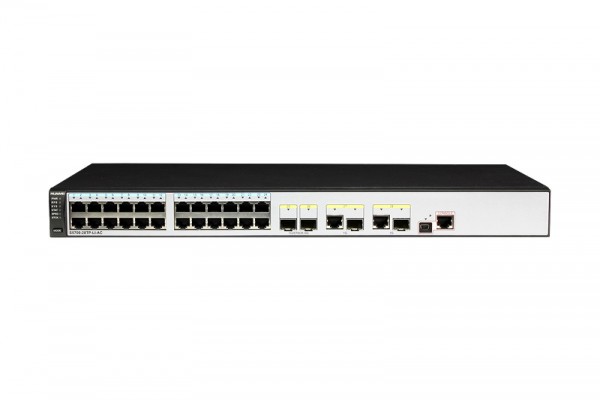

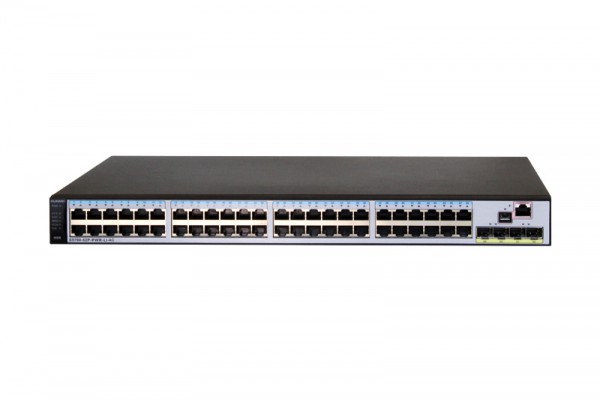

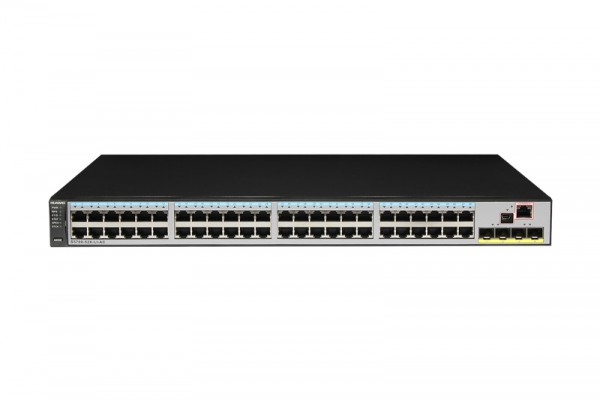

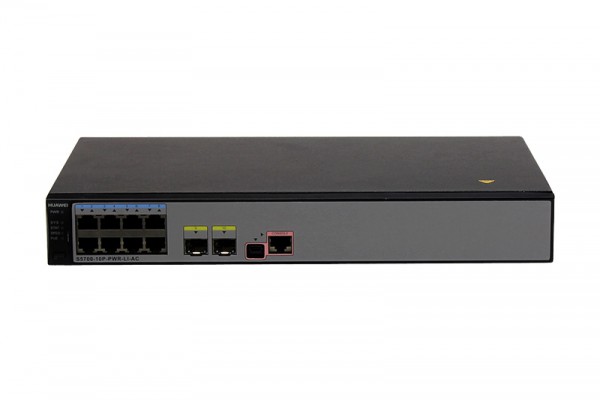

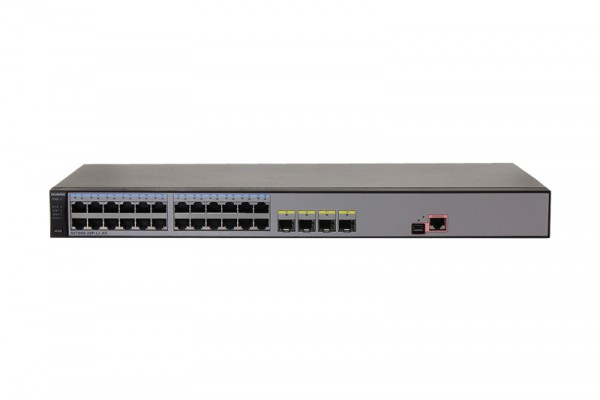

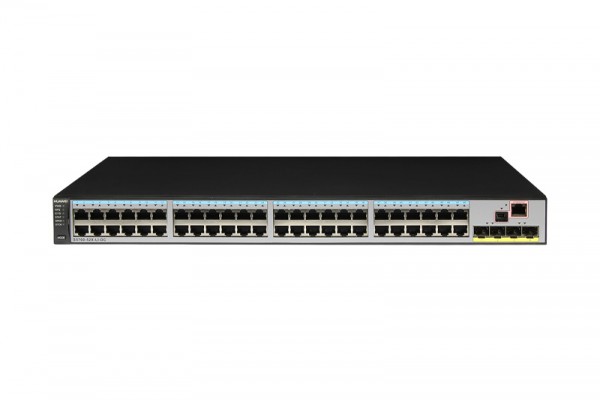

S5700-LI Series Simplified Gigabit Switches

Super-flexible, easy-to-manage platform that lets you optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s in a highly reliable and energy-efficient switch.

Specifications

Specifications S5700(-X)-LI SeriesS5700-LI-CSFPS5701-X-LI Series S5700S-LI Series S5700-LI-BAT Series
MAC Address Table 16K
VLAN 4K
Ring Network Protection RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchoverSmart Ethernet Protection (SEP)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection
IP Routing Static route
Multicast IGMPv1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics
Security Hierarchical user management and password protectionAAA authenticationLimit on the number of learned MAC addresses

NAC

DHCP relay, DHCP server, DHCP snooping, DHCP security, and DHCP SAVI

Port isolation, port security, and sticky MAC
Surge Protection Surge protection capability of service ports: 6 kV
Battery Management Web-based management system used to check the battery status and manage the battery (supported by battery LAN switches)
Interoperability VBST (Compatible with PVST/PVST+/RPVST)LNP (Similar to DTP)VCMP (Similar to VTP)
