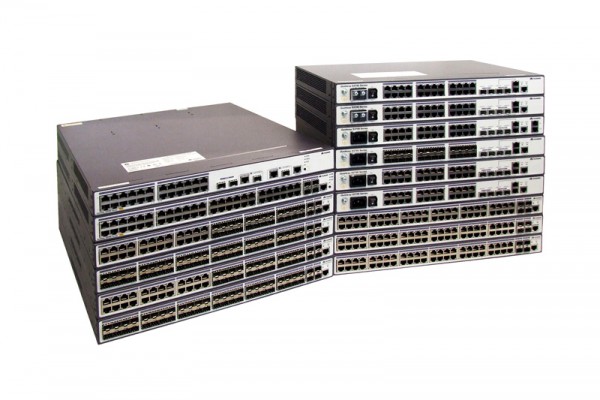

For Fast Ethernet switching over twisted-pair copper, Huawei’s S3700 Series combines proven reliability with robust routing, security, and management features in a compact, energy-efficient switch..
Specifications
| Specifications | S3700-SI | S3700-EI |
| Port Description | Downlink: 24/48 x 100 Base-TX Ethernet ports
Uplink: 4 x GE ports |
Downlink: 24/48 x 100 Base-TX Ethernet ports
Uplink: 4 x GE ports |
| Reliability | RRPP, Smart Link, and SEP
STP, RSTP, and MSTP |
RRPP, Smart Link, and SEP
STP, RSTP, and MSTP BFD |
| IP Routing | Static route, RIPv1, RIPv2, and ECMP | Static route, RIPv1, RIPv2, and ECMP
OSPF, IS-IS, and BGP |
| IPv6 Features | Neighbor Discovery (ND)
Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually configured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping |
Neighbor Discovery (ND)
Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually configured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping |
| Multicast | 1K multicast groups
IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics |
1K multicast groups
IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics |
| QoS/ACL | Rate limiting on packets sent and received by an interface
Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
Rate limiting on packets sent and received by an interface
Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
| Security and Access | User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist DHCP server, DHCP relay, DHCP snooping, and DHCP security |
User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist DHCP server, DHCP relay, DHCP snooping, and DHCP security |
| Surge Protection | Surge protection capability of service ports: 6 kV (The surge protection capability of service ports on PoE switches is 1 kV.) | Surge protection capability of service ports: 6 kV (The surge protection capability of service ports on PoE switches is 1 kV.) |
| Management and Maintenance | iStack
MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm (S3700-28TP-EI-MC-AC) SNMP v1/v2c/v3 and RMON MUX VLAN and GVRP eSight and web NMS SSH v2 |
iStack
MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm (S3700-28TP-EI-MC-AC) SNMP v1/v2c/v3 and RMON MUX VLAN and GVRP eSight and web NMS SSH v2 |

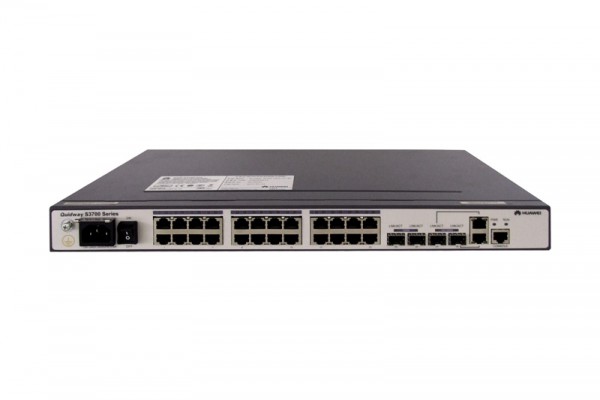

| Power Consumption | S3700-28TP-SI < 20W

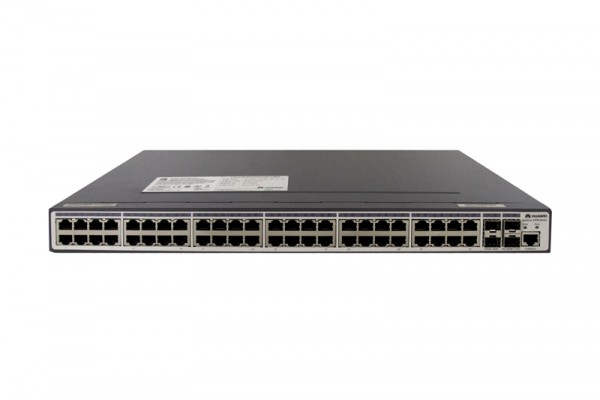

S3700-52P-SI < 38W |

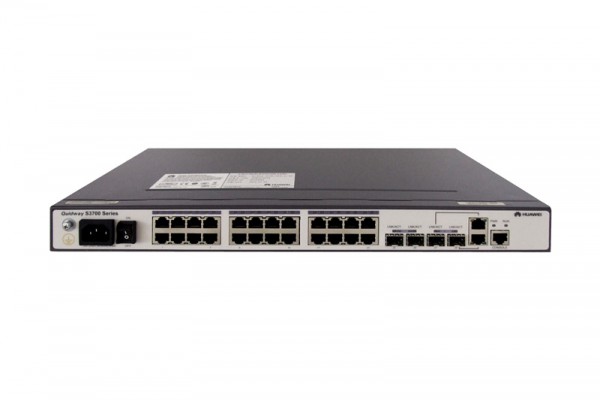

S3700-28TP-EI < 20W

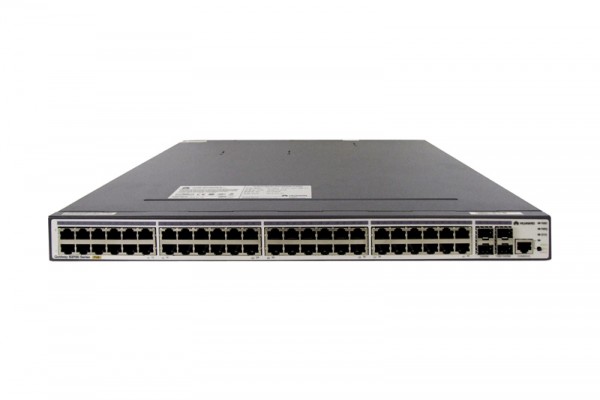

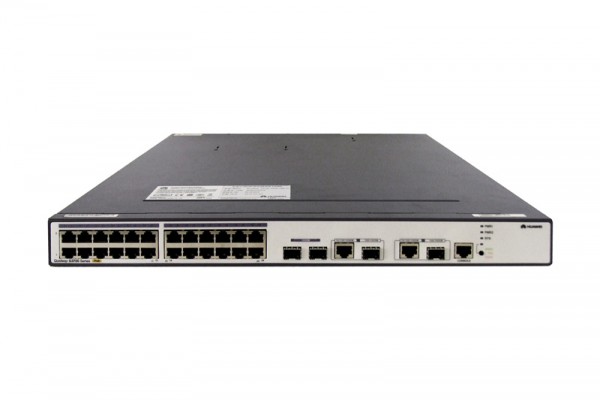

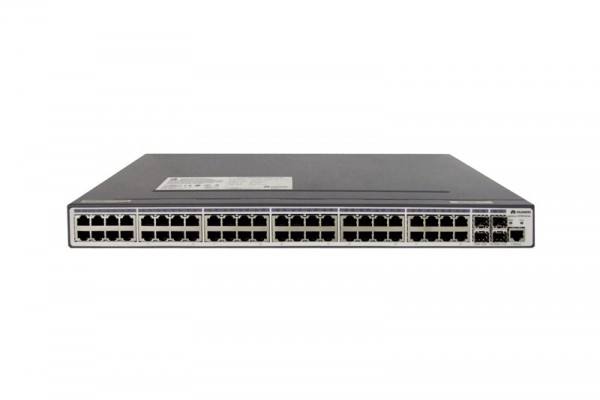

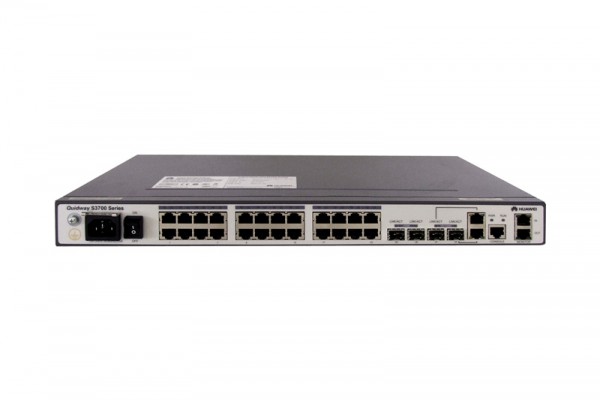

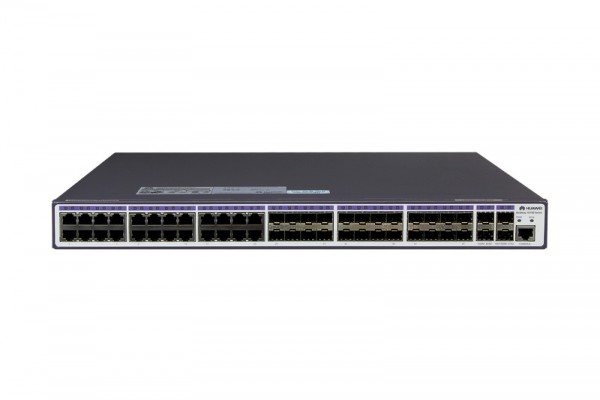

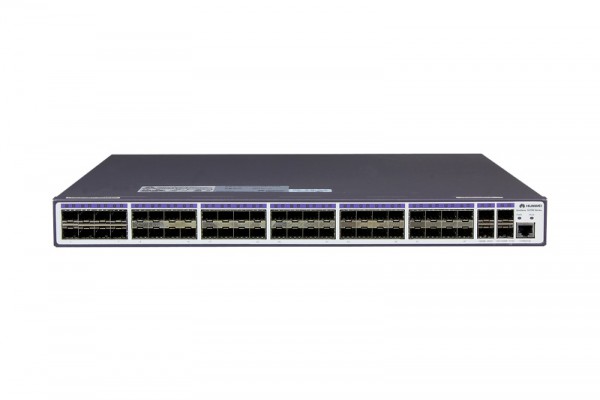

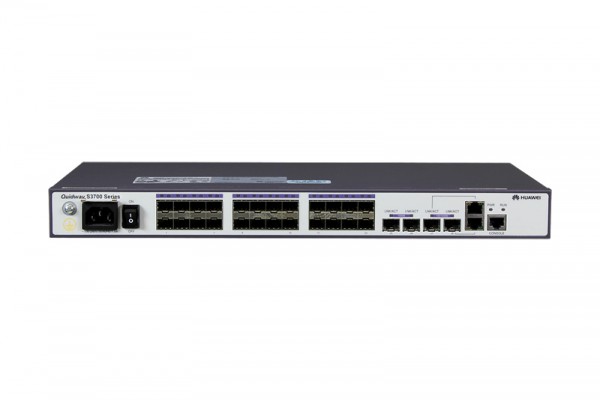

S3700-28TP-EI-MC < 20W S3700-28TP-EI-24S < 52W S3700-52P-EI < 38W S3700-52P-EI-24S < 65W S3700-52P-EI-48S < 90W S3700-28TP-PWR-EI < 818W (PoE: 740W) S3700-52P-PWR-EI < 880W (PoE: 740W) |
