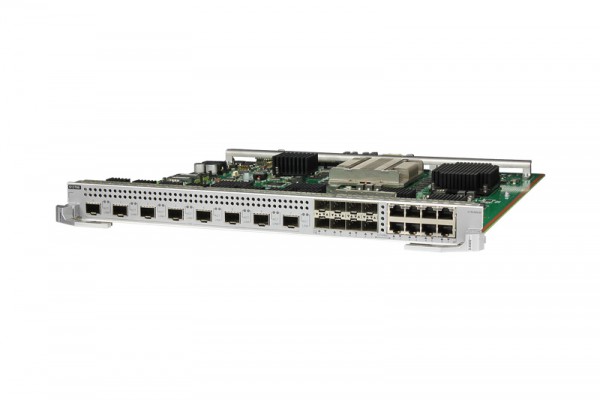

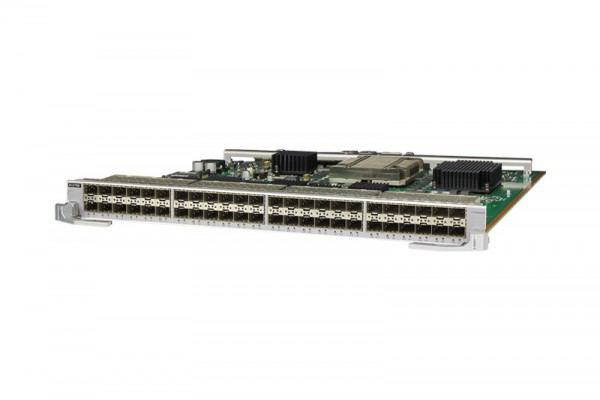

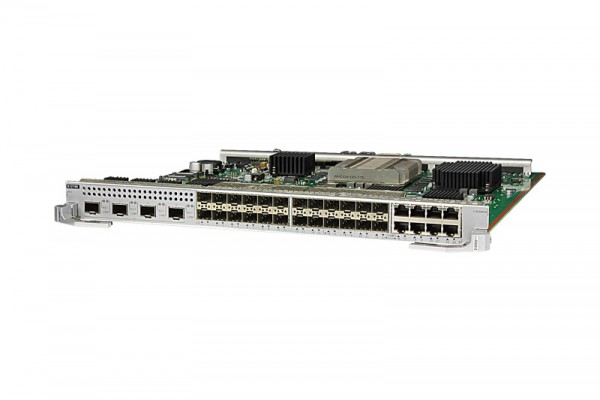

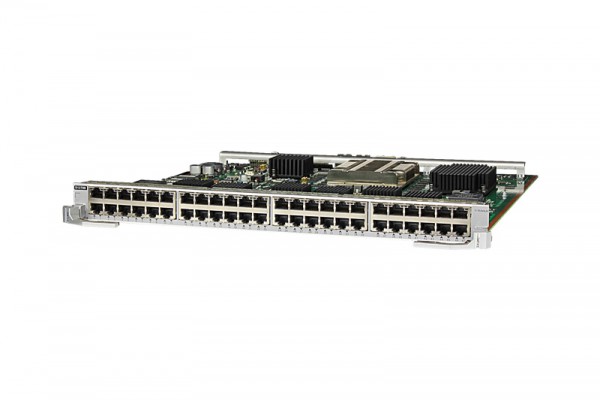

X1E Series Native Wireless Access Controller Card

Huawei X1E series cards build a converged wired/wireless network without the need to purchase separate ACs. Integrated with Huawei’s Ethernet Network Processor (ENP), the X1E series can function as a combined switch +AC card or an AC card only. The native data access, switching services, and wireless access capabilities reduce the high cost of buying and maintaining separate devices and streamline wireless transmission to eliminate unnecessary delays.

Specifications

Specifications	X1E Series Native Wireless Access Controller Card
Ports	48-Port 10/100/1000 BASE-T 48-Port 100/1000 BASE-X 4-Port 10G BASE-X + 24-Port 100/1000 BASE-X + 8-Port 10/100/1000 BASE-T Combo 8-Port 10G BASE-X + 8-Port 100/1000 BASE-X + 8-Port 10/100/1000 BASE-T Combo
PoE	NA
Power Supply	Chassis power supply
Forwarding Capacity	1 Tbit/s
Maximum Number of Managed APs	1K per card (S12700 is used as an example here)
Maximum Number of Access Users	16K for the entire device (S12700 is used as an example here)
AP-AC Networking	Layer 2 or Layer 3 networking
Forwarding Modes	Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding)
AC Active/Standby Modes	1+1 HSB or N+1 backup
Radio Protocols	802.11 a/b/g/n/ac
