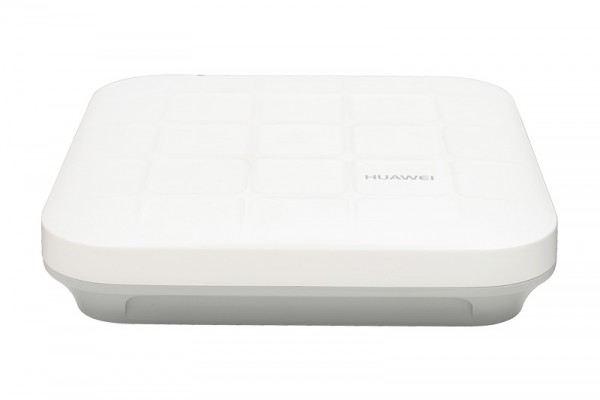

Huawei AP7030DE dual-band AP provides secure gigabit wireless access in compliance with 802.11ac standards. The AP7030DE delivers high-powered performance in a rugged, attractive enclosure, which is ideal for high-capacity wireless connectivity in large venues, such as public or private assembly halls and convention centers. Built-in smart antenna arrays provide WLAN throughput up to 1.9 Gbit/s with optimum indoor coverage.
Specifications
| Specifications | AP7030DE |
| Dimensions (H x W x D) | 220 mm x 220 mm x 53 mm |
| Power Input | 12V DC ± 10%
PoE: −48V DC |
| Maximum Power Consumption | 21W |
| Operating Temperature | −20°C to +55°C |
| Antenna Type/Antenna Gain | Dual-band smart antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
| Maximum Number of Concurrent Users | ≤ 256 |
| Maximum Transmit Power | 25 dBm (combined power) |
| MIMO: Spatial Streams | 3 x 3:3 |
| Radio Protocols | 802.11a/b/g/n/ac |
| Maximum Rate | 1.9 Gbit/s
|
