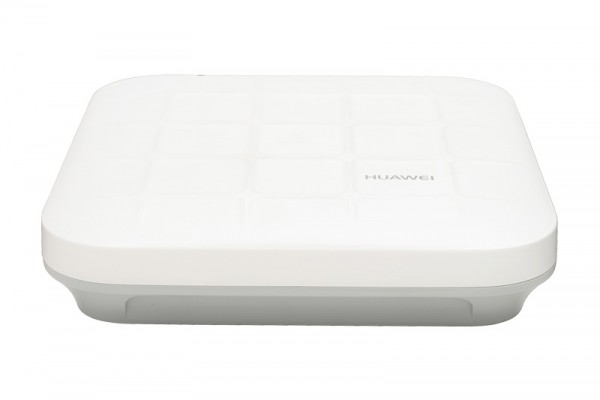

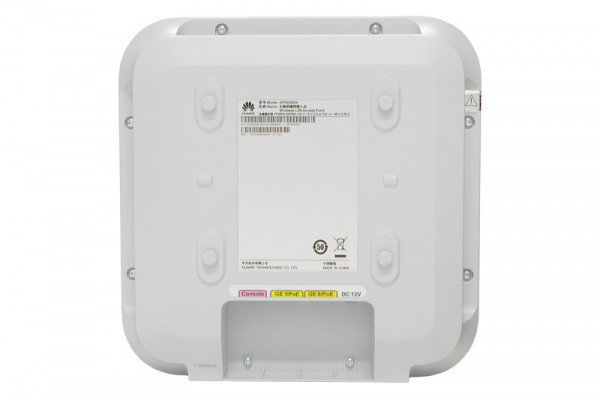

Huawei AP5010 Series wireless APs offer superior value and flexibility with 2.4 GHz and 5 GHz radios, IEEE 802.11a/b/g/n standards compliance, and Fit AP or Fat AP operation. These latest-generation APs support MIMO technology, provide wider coverage, and offer services simultaneously on 2.4 GHz and 5 GHz frequency bands to connect more users.
Specifications
| Specifications | AP5010DN-AGN | AP5010SN-GN |
| Dimensions (H x W x D) | 180 mm x 180 mm x 50 mm | 180 mm x 180 mm x 50 mm |
| Power Input | 12V DC ± 10%
PoE: –48V DC (in compliance with IEEE 802.3af/at) |
12V DC ± 10%
PoE: –48V DC (in compliance with IEEE 802.3af/at) |
| Maximum Power Consumption | 9.5W | 6.0W |
| Operating Temperature | –10℃ to +50℃ | –10℃ to +50℃ |
| Antenna Type/Antenna Gain | Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi | Built-in antenna/4 dBi |
| Maximum Number of Concurrent Users | ≤ 128 | ≤ 128 |
| Maximum Transmit Power | 20 dBm (combined power) | 20 dBm (combined power) |
| MIMO: Spatial Streams | 2 x 2:2 | 2 x 2:2 |
| Wireless Protocol | 802.11a/b/g/n | 802.11b/g/n |
| Maximum Speed | 600 Mbit/s
|
300 Mbit/s |
