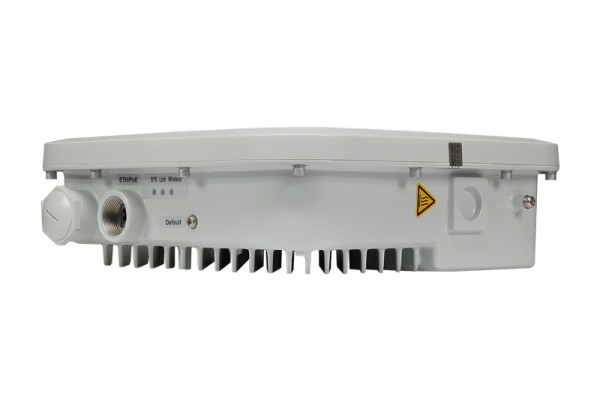

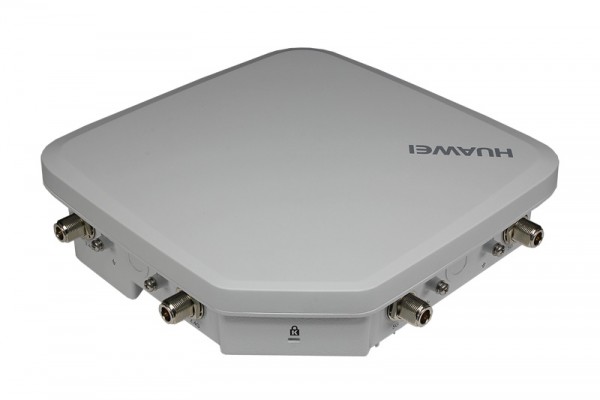

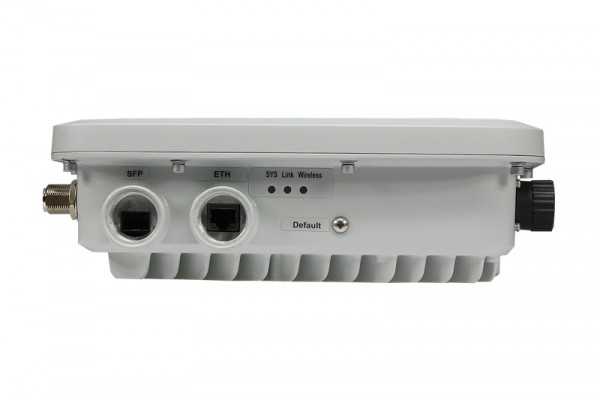

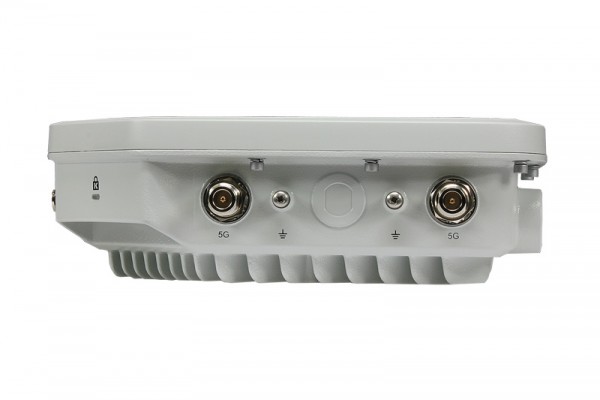

Huawei AP6510DN-AGN and AP6610DN-AGN performance-enhanced 802.11n outdoor APs provide dual-band connectivity for wireless throughput up to 600 Mbit/s. Industrial-grade protection includes a dustproof and waterproof hardened metal casing that is high- and low-temperature resistant.
Specifications
| Specifications | AP6510DN-AGN | AP6610DN-AGN |
| Dimensions (H x W x D) | 255 mm x 255 mm x 83 mm | 255 mm x 255 mm x 83 mm |
| Power Input | PoE: −48V DC (in compliance with IEEE 802.3at) | AC power supplyRated voltage: 100V AC to 240V AC, 50/60 Hz
Maximum voltage range: 90V AC to 264V AC, 47 Hz to 63 Hz |
| Maximum Power Consumption | 25.5W | 30W |
| Operating Temperature | −40℃ to +60℃ | −40℃ to +60℃ |
| Antenna Type | Dual-polarization antenna or common outdoor antenna | Dual-polarization antenna or common outdoor antenna |
| Maximum Number of Concurrent Users |
≤ 256 |
≤ 256 |
| Maximum Transmit Power | 29 dBm (combined power) | 30 dBm (combined power) |
| MIMO: Spatial Streams | 2 x 2:2 | 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n | 802.11a/b/g/n |
| Highest Rate | 600 Mbit/s
|
600 Mbit/s |
